High Quality
Our water tanks are manfactured to our high standard of quality.
UK Delivery
High demand has resulted in extended lead times for many of our products. We are manufacturing as fast as we can, but please call for more information.
International
International delivery is available. Please call for details.

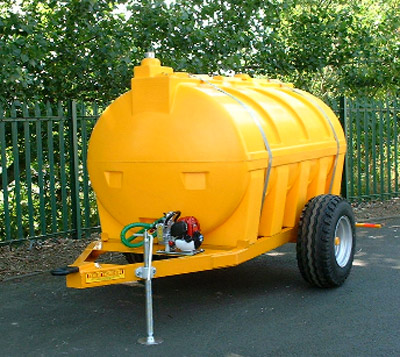

CHASSIS Constructed from 4 x 2 RSC fully welded with 'A'
Frame drawbar.
AXLE Single solid beam axle fitted with 6 stud 205
Pcd hubs
WHEELS & TYRES 2 No 10.5 x 15 flotation tyres on 6 stud 205pcd rims
COUPLING 2" forged solid ring eye
TANK Constructed from heavy duty Polyethylene,
2" filler, rear ¾" tap. Ribbed cylindrical tank Yellow or
Green as standard or Blue Drinking Water tank.
ANCILLARY EQUIPMENT Front screw jack
PUMP OPTION Honda petrol engine driven 1" water pump c/w 2m wide
rear spray bar/spreader plate. (optional only)
FINISH Primer and two top coats, single British Standard colour
to chassis.
DIMENSIONS Approximately :-
Width 1.803m (71") Gross Weight 2732kg
Length 3.378m (133")
Height 1.829m (71") Unladen Weight 460kg
Towing height 508mm (20")
Fast nationwide delivery available on all our water tanks
Call Now 01763 261781
