High Quality
Our water tanks are manfactured to our high standard of quality.
UK Delivery
High demand has resulted in extended lead times for many of our products. We are manufacturing as fast as we can, but please call for more information.
International
International delivery is available. Please call for details.

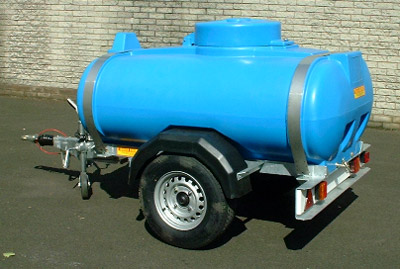

CHASSIS Constructed from 70 X 70 R.S.A. fully welded with a 'T' frame drawbar, all fully hot dipped galvanised to B.S Standards.
AXLE/SUSPENSION Avonride rubber torsion beam axle fitted with 200 x 50 auto reverse brakes. 4 stud 5½" pcd hubs
WHEELS/TYRES 2 no. 185 x 13 6 ply commercial van tyres on 5½" pcd 4 stud rims.
COUPLING Avonride auto reverse coupling fitted with 50mm ball, or 40mm eye, break away cable and parking brake lever.
TANK Blue, elliptical in section, baffled & moulded from polyethylene & fitted with an 18"lockable outer hinged manlid cover, inner sealed vented manlid.Tank secured to chassis with 2 stainless steel straps.2 rear taps fitted with hinged Dog guards (option)
tank fitted with stainless steel inserts ,
2" bottom drain valve
ANCILLARY EQUIPMENT Moulded mudguards, front telescopic jockey wheel,
lighting board.
FINISH Tank in drinking water blue approved poly.
Chassis galvanised
OPTIONAL (extra) Male hydrant connection under manlid.
DIMENSIONS Approximately :-
Width 1.5m (59") Gross weight 1400kg
Length 2 .75m(108")
Height 1.22m(48") Unladen weight 260kg
Fast nationwide delivery available on all our water tanks
Call Now 01763 261781
