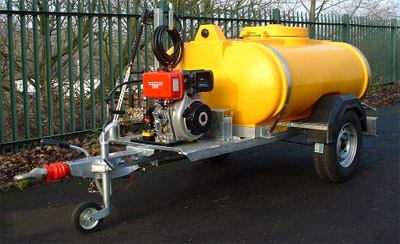

CHASSIS Constructed from 70 X 70 R.S.A. fully welded with a 'T' frame drawbar, all fully hot dipped galvanised.
AXLE/SUSPENSION Avonride rubber torsion beam axle fitted with 200 x 50 auto reverse brakes. 4 stud 5½" pcd hubs
WHEELS/TYRES 2 no. 185 x 13 6 ply commercial van tyres on 5½" pcd 4 stud rims.
.
COUPLING Avonride auto reverse coupling fitted with 40mm eye or 50mm ball, break away cable and parking brake lever
TANK Elliptical in section, baffled & moulded from polyethylene & fitted with an 18"lockable outer hinged manlid cover, inner sealed vented manlid. Tank secured to chassis with 2 stainless steel straps.1 rear tap fitted , 2" bottom drain underneath rear of tank .Inner anti surge baffle.
PUMP Yanmar electric start L100 10HPengine driving a 200 Bar,15Lpm piston pump c/w hand lance & 7m of hose stowed on bracket. Fuel consumption approx 1.5L/Hr, running time approx 2.9Hrs
ANCILLARY EQUIPMENT Moulded mudguards, front telescopic jockey wheel,
rear lighting board..
FINISH Tank moulded in yellow polyethylene.
Chassis galvanised
DIMENSIONS Approximately :-
Width 1.55m (61") Gross weight 1500kg
Length 3.480m(137")
Height 1.22m(48") Unladen weight 375kg
